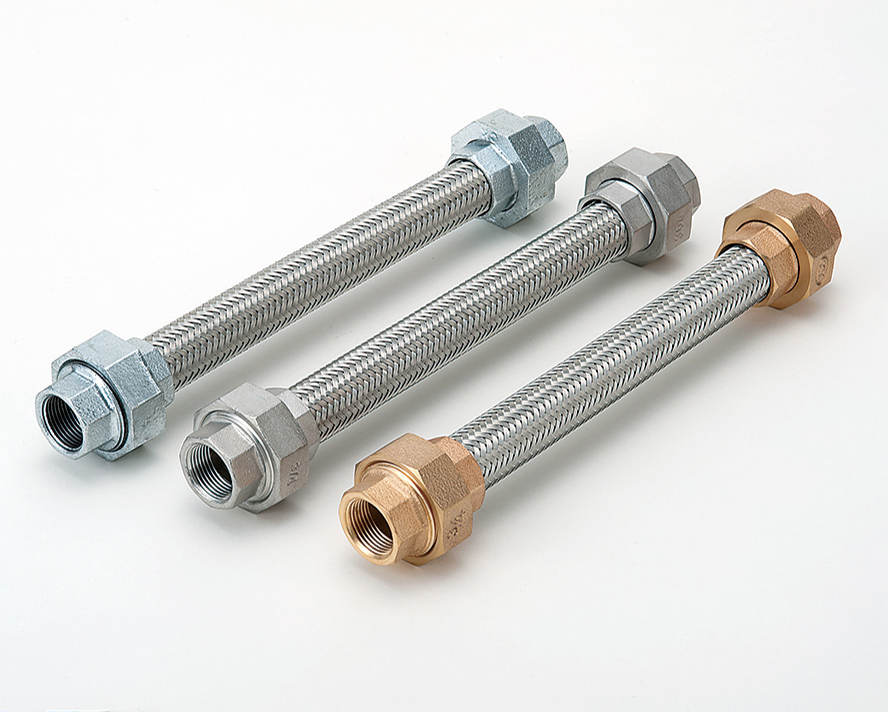

■ NK-VN2000
Slim union type
■ Use
Adjustment of piping, Lateral deflection, Vibration absorption, Angular rotation
*Do not torque the hose.
■ Feature
This product welds a slim union threaded to a tube.
Applicable tube: STD・SA(Soft)・CLT(Ultra Soft)
*Select the tube to match the use conditions.
Length:Appended~10M
*Please contact us about the length.

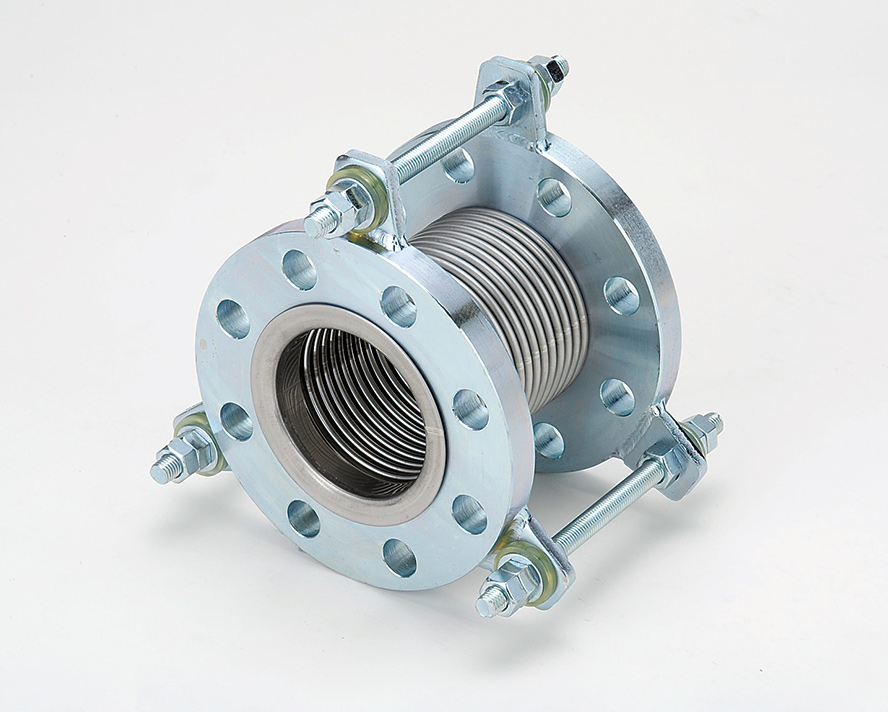

■ NK-VN2600
General-purpose flange type
Floating flange both ends
■ Use
Adjustment of piping, Lateral deflection, Vibration absorption, Angular rotation
*Do not torque the hose.
■ Feature
This product welds a lap joint and pipe to a tube.
Applicable tube: STD・SA(Soft)・CLT(Ultra Soft)
*Select the tube to match the use conditions.
Nominal Dia: 10A~350A Length: Appended Table~5M
*Please contact us about the length.
■ NK-VN3100
Standard flange type
■ Use
Adjustment of piping, Lateral deflection.
*Do not torque the hose.
■ Feature
This product welds a collar to a tube.
Applicable tube: STD
Select the tube to match the use conditions.
Nominal Dia: 15A~250A Length: Appended Table~3M
*Please contact us about the length.
■ NK-VN6300
Non welded type
■ Use
Adjustment of piping, lateral deflection, Vibrational absorption.
*Do not torque the hose.
■ Feature
Feature: Structure in which the mounting flange without welding, it will be sealed with a tube end face.
Applicable tube: SA
Nominal Dia: 20A~300A Length: Appended Table~3M
*Please contact us about the length
■ NK-2300PT
Pipe end type of vacuum
■ Use
Adjustment of piping, Lateral deflection, Vibration absorption, Angular rotation
*Do not torque the hose.
■ Feature
This product is both ends of pipe, this can connect the flare less joint.
Applicable tube: CLT(Ultra Soft)
Nominal DIA: 3.18~12.7mm
Length: 100mm~3M
*Please contact us about the length.
Applicable fluid: Gas, Water, Air
*Limited to fluid that not use corrode stainless steel.
Operating temperature: -196~300℃
Operating Pressure FV~0.3MPa
*Allowable leak rate less than 1.33×10-10Pa ㎥/Sec.
■ NK-VN7800
Pump Joint
■ Use
Vibration absorption of the pump.
*Do not torque the hose.
■ Feature
Without using the built-in to the welding of the flange,
they become a 2-layer SUS316L bellows own, is a product durability is high.
Applicable fluid: Water, Oil, Air, Steam
*Limited to fluid that not use corrode stainless steel.
Applicable tube: 2 layer bellows Nominal Dia: 50A~300A
Standard: JIS 10K, 20K
*Please contact us about the other standard.
Operating temperature 10~80℃
Operating pressure 1.0MPa 2.0MPa
■ NK-VN6500
General-purpose type
■ Feature
This product welds a pipe to a bellows.
Applicable fluid: Exhaust gas Air Low pressure steam Water
Applicable bellows: MF,iO
Material: SUS304 SUS316L SUS310S
*Please contact us for material.
Standard: JIS, ANSI, DIN
■ NK-VN1000
Standard Union type
■ Use
Adjustment of piping, Lateral deflection.
*Do not torque the hose.
■ Feature
This product welds a union collar to a tube.
Applicable tube: STD
Nominal Dia: 8A~65A
Length:200mm~10M *Please contact us about the length.
